Apeks Xtx 5 Port Dst 1St Stage

349,00 288,43 Excl. VAT
Add to wish list
Customers rate us with a 9,4

In stock: 2
Reviews Write a review
Add to favorites
  • If in stock = shipped the same day
  • Free shipping in NL & BE from € 65,-
  • Free returns in NL
  • Pay with iDeal, PayPal, creditcard or afterwards
  • Member of Thuiswinkel Waarborg
  • 5 dive shops in NL: Rotterdam | Amstelveen | Zuidlaren | Voerendaal | Nieuwegein



  • Product description and specifications
  • Documents

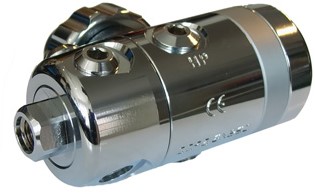

Product description Apeks Xtx 5 Port Dst 1St Stage

The Apeks Xtx 5 port Dst 1St Stage has four medium-pressure ports all mounted on a rotating turret. This results in optimal hose routing while eliminating sharp bends in the hose.

  • 5th port is available for sidemount or twin cylinder set ups.
  • Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
  • 2 HP ports and 4 MP ports
  • A rotating turret are angled for optimum hose routing
  • An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out.
  • Dry Sealed System with swivel turret (DST)
  • Available in both DIN and yoke fitting
  • Suitable for coldwater use (below 10 C / 50 F).
  • EN250A approved when purchased as a stage 3 set

""

Specifications for Apeks Xtx 5 Port Dst 1St Stage

BrandApeks
Category1st stages
Tags RT129117 90200090
EAN Code5055538801426
Product code726064 BCBKDI5
UnitPiece
Sublub's choice

Show me the best

Sublub's choiceYes
CE cert for cold water

Regsets with a CE cold water certificate have been tested in waters below 10 degrees. When diving in NL/BE this comes in handy. In summer, the water on the surface may be warmer than 10 degrees, however, when decending to greater depths, you’ll hit various thermoclines in which the water temperature may be less than 10 degrees.

CE cert for cold waterYes
1st stage connection

The INT ( yoke) connection uses a clamp type to mount the regulator over the cylinder valve and is tightened into place by screwing the cap. This pushes the first stage into the sealing o-ring of the cylinder valve. With the DIN fitting the male part is screwed into the valve to securely capture the o-ring. We recommend the DIN connection, since this is a safer connection. This connection is mostly used for 300bar cylinders. However, the DIN300 bar connection also works with a 200bar tank valve

1st stage connectionDIN300 bar
1st stage HP port

A second high pressure port on a 1st stage is necesarry if you are contemplating to dive with a computer that is air integrated. The transmitter will be attached to the second high pressure port so that you will always have backup analogue SPG.

1st stage HP port2 HP ports
1st stage LP port5 lp-ports
Nitrox

In Europe, it is mandatory to have a special M26 regset and cylinder when diving with Nitrox. The regsets that are shown here, do not have this special M26 thread. However, these are all technically fit to dive with Nitrox up to 40%. Outside of Europe, you can use these regs to dive with Nitrox up to 40%.

NitroxTechnically suitable upto 40%
1st stage air supply

When you dive with an unbalanced 1st stage, breathing may become a little harder as your cylinder is being depleted of air. A balanced 1st stage will give you an even resistance during your dive, as long as your cylinder contains more than 20 Bar. An overbalanced 1st stage will give you a little more pressure when at depth, which will make breathing at greater depth easier. You will be able to feel the difference from a depth of 20 to 25 meters.

1st stage air supplyOverbalanced
1st stage type

A piston 1st stage is easier to service, since there are less parts. However, a piston 1st stage needs to be serviced earlier than other 1st stages, since the water does get inside the 1st stage. A membrane 1st stage may be less maintanace- sensitive, however, you’ll have to be more precise in adjusting it. If you would like to dive in cold(er) waters, we would recommend a 1st stage with a membrane.

1st stage typeMembrane
