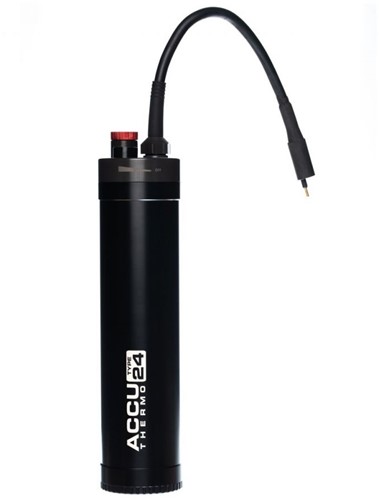

Ammonite Accu Type Thermo 24

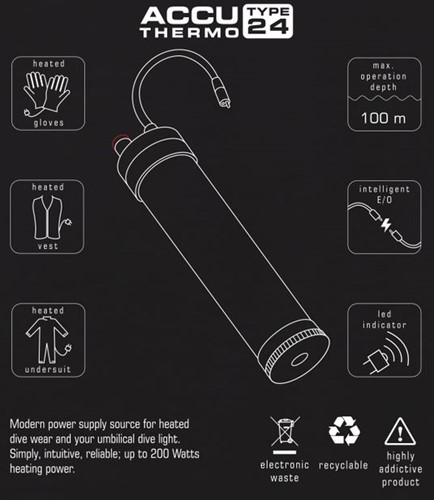

The ACCU THERMO battery has been designed to efficiently and reliably supply power to heated dive wear and umbilical dive lights operating at 12V.
Simple and intuitive control, efficiency, and the highest possible durability distinguish ACCU THERMO from other devices on the market of modern diving equipment.

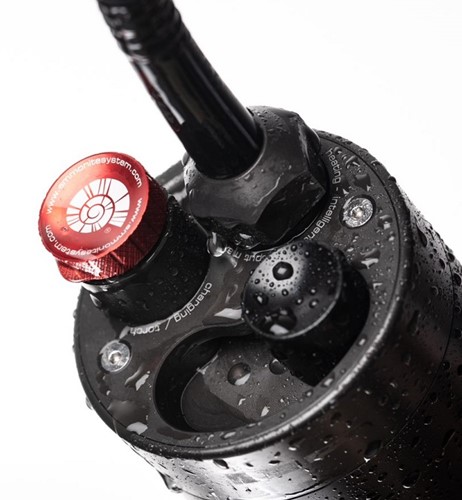

ACCU THERMO has two connection ports. They’re located at the top part of the casing.
One port with a permanently installed E / O cord (cords with wet connector) is to be used only for the heated dive wear.

The LED indicator is located on the top cover of the battery and it informs the user about the battery charge level and the operating status of the entire system.

The three-stage power control (0/70% / 100%.) ensures the effective management of energy and allows for extended battery life.
The power is regulated by a large magnetic switch. It has a distinct step, noticeable even with thick gloves on.

It is an electronic circuit that protects the E / O cord (the metal pins in the E / O cord connector) against the harmful effects of electrolysis.
When ACCU THERMO is not connected to any receiver (e.g., a heated vest), there is no voltage on the wet connector (E/O cord end).
Thanks to the „intelligent E/O”, voltage is cut off automatically also when the cord gets unplugged during operation.
This way, anytime the unconnected E/O cord is in the water, an electrical current doesn’t pass through its pins, making the system safe from damage.

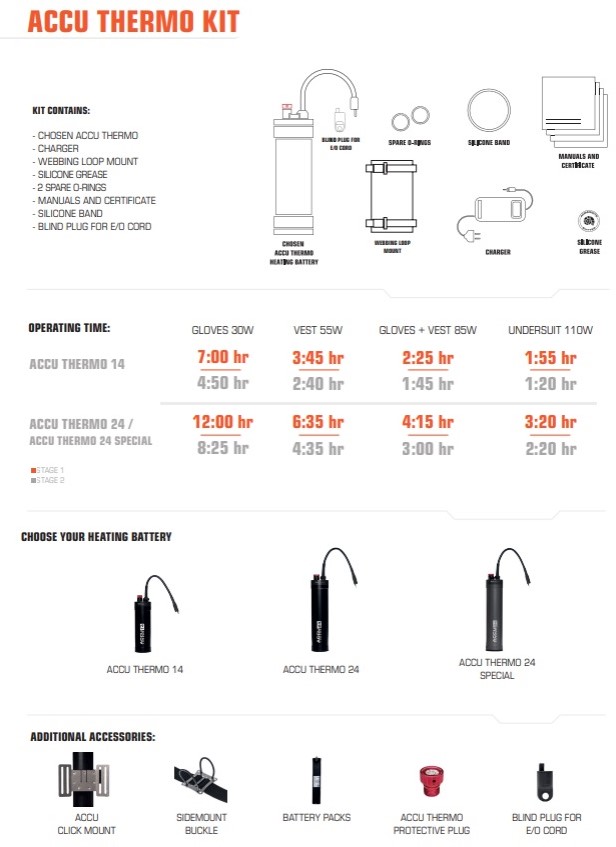

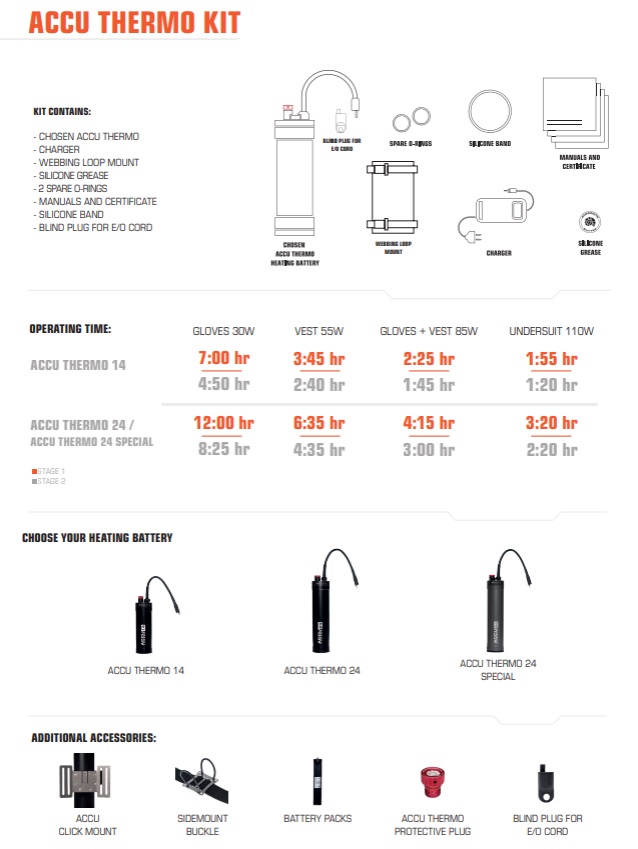

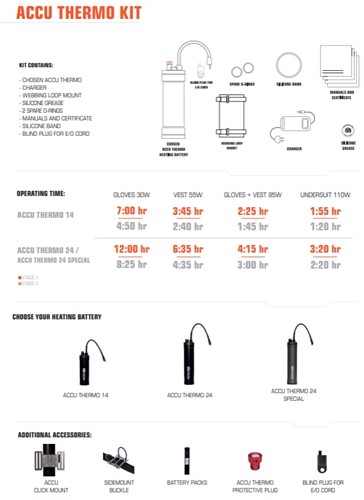

KIT CONTAINS:
CHOSEN ACCU THERMO
CHARGER
WEBBING LOOP MOUNT
SILICONE GREASE
2 SPARE O-RINGS
MANUALS AND CERTIFICATE
SILICONE BAND
BLIND PLUG FOR E/O CORD

Specifications:
capacity nominal 23,45 Ah
charge/discharge cycles 500-700
charger input voltage 100-240 V
charging time ~8 h
voltage 10,95 V
length 262 mm
diameter 66mm
weight 1610 g
weight in water 715 g
max. operation depth 100 m
