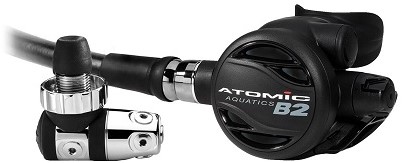

Artikelomschrijving Atomic B2 1e + 2e Trap

Our most popular regulator, the Atomic B2 system combines the signature second stage design and materials of the T3 with a Chrome-plated Brass first stage.
The result is an incredibly high-performance regulator system.

B2 BRASS & TITANIUM REGULATOR
The Atomic B2 has garnered more awards from independent tests and reviews than any other regulator on the market.
And the B2 has fans in virtually every corner of the dive industry.
The signature breathing performance of the T3 was engineered into the B2 with virtually the same corrosion-resistance.
The difference is the metals used in the first stage, which are more economical without sacrificing performance.
And the B2 ergonomics make it the world’s most comfortable second stage, just like the T3.

PATENTED AUTOMATIC FLOW CONTROL
You shouldn’t have to think about breathing when you dive.
The exclusive Atomic AFC helps you breathe naturally at any depth without thinking about making adjustments.
The Atomic AFC eliminates the manual adjustment normally needed to regulate Venturi effect as you dive deeper.
No dials to turn or buttons to push.
A Rapid Adjustment Knob is included for special situations like surf entry or octo use. (US Patent No. 5,678,541)

PATENTED COMFORT SWIVEL
Divers also shouldn’t have to worry about turning, twisting or looking over your shoulder.
The popular Atomic Comfort Swivel removes that concern by allowing 30° range of motion without hose binding, pulling or kinking.
The B2 Comfort Swivel is polished Stainless Steel with black PVD coating. (US Patent No. 7,188,869)

THE MOST AWARDED ATOMIC REGULATOR
Virtually identical performance as the T3 with a Brass First Stage The B2 gives divers a close alternative to the all-Titanium T3.
The signature Atomic breathing performance is nearly identical.
The B2 is ergonomically designed to be the world’s most comfortable second stage just like the T3.
The key difference is the chrome-plated Brass body of the B2 first stage, which is more economical without sacrificing performance.
That’s why the B2 has garnered more awards from independent tests and reviews than any other regulator on the market.

LIGHTWEIGHT WITH HEAVYWEIGHT PERFORMANCE
The B2 weighs just 2.5 pounds (yoke version), just 9 ounces more than the super lightweight T3.

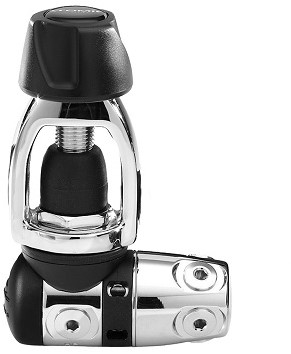

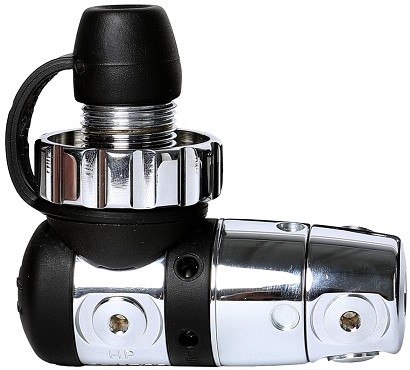

B2 FIRST STAGE FEATURES
Chrome-plated Brass and 316 Stainless Steel
Atomic exclusive balanced Jet Seat high-flow piston.
Optional factory-sealed to prevent outside contamination from silt and sand.
Nitrox ready – approved for non-dedicated EAN use with mixtures up to 40%.
Ports: 2 HP fixed / 5 LP on swivel cap

B2 SECOND STAGE FEATURES
All-Titanium construction and materials – same as the T3.
Pneumatically-balanced poppet, high-flow case and lever design for easy breathing at all depths and tank pressures.
Patented Atomic AFC – Automatic Flow Control.
Soft overmolded Rapid Adjustment Knob for manual detuning in special situations such as surf entries or octo use.
Patented Atomic Titanium Seat Saving Dynamic Orifice maintains crisp like-new factory tuning and prevents damage during storage.
Hose features patented polished 316 Stainless Steel Atomic Comfort Swivel with Black PVD coating.
Dual material second stage cover enables entire front to be used for purge.
Elliptical exhaust valve dramatically reduces exhalation effort at depth.
Dual silicone comfort fit mouthpiece with tear-resistant bite tabs – both comfortable and durable.
Optional color kit available.

Specificaties Atomic B2 1e + 2e Trap

MerkAtomic
CategorieAutomaten
ArtikelcodeA03-0027-7P-Atomic B2
VerpakkingStuk(s)
1e trap aansluiting

Een INT (of yoke) aansluiting is een beugel die je over de kraan van de fles heen schuift en vastschroeft met een knop. Deze aansluiting kan tot 200 bar gebruikt worden. Een DIN aansluiting bestaat uit schroefdraad die in je in de kraan draait. Deze aansluiting is veiliger omdat de O-ring helemaal gevangen zit tussen de kraan en de 1e trap. Daarom kan deze aansluiting in de meeste gevallen een flesdruk van 300 bar aan. Een DIN300 bar aansluiting past overigens ook op een 200 bar kraan.

1e trap aansluitingINT
DIN300 bar
1e trap hogedrukpoort

Een tweede hogedrukpoort op een 1e trap is handig als je overweegt om een computer met zender te gaan gebruiken. Deze zender heeft een poort nodig en op de andere poort kan je een backup manometer aansluiten.

1e trap hogedrukpoort2 hp-poorten
1e trap lagedrukpoort5 lp-poorten
Nitrox

In Europa moet je voor nitrox duiken officieel een speciale automaat en duikfles met M26 aansluiting gebruiken. De hier aangegeven automaten hebben niet deze aansluiting, maar ze zijn technisch wel geschikt voor gebruik met nitrox tot een zuurstofpercentage van 40%. Op vakantie buiten Europa kan je met deze automaten dus met nitrox duiken.

NitroxTechnisch geschikt tot 40%
1e trap luchttoevoer

Een ongebalanceerde 1e trap zal zwaarder gaan ademen naarmate je fles leger raakt. Een gebalanceerde 1e trap zal een constante weerstand hebben tijdens je duik, zolang je niet onder de 20 bar flesdruk komt. Een overgebalanceerde 1e trap zal nog meer extra druk geven op diepte, waardoor het ademen makkelijk blijft. Dit is merkbaar vanaf een diepte van ongeveer 20 a 25 meter.

1e trap luchttoevoerGebalanceerd
1e trap aansturing

Een piston 1e trap is makkelijk in onderhoud en bestaat uit minder onderdelen, maar heeft meestal eerder onderhoud nodig omdat er water bij bewegende delen komt. Een membraan 1e trap is minder onderhoudsgevoelig en is preciezer af te stellen. Voor gebruik in koud water heeft een membraan 1e trap de voorkeur.

1e trap aansturingPiston
2e trap luchttoevoer

Een gebalanceerde 2e trap ademt lichter dan een ongebalanceerde 2e trap. In combinatie met een overgebalanceerde 1e trap moet je altijd een gebalanceerde 2e trap gebruiken.

2e trap luchttoevoerGebalanceerd
